Microsoft Purview Records Management
Formal lifecycle governance for financial, legal and HR records — Record Labels, File Plan, Disposition Review and Regulatory Records.
Difficulty
Advanced
Environment
Microsoft 365 / Purview
Deployment
Production
Est. Implementation
2–4 weeks
Executive Summary
This project deployed Microsoft Purview Records Management for a regulated organisation requiring formal lifecycle governance over financial, legal and HR records, establishing record declaration controls, immutable record protection, structured disposition workflows and centralised records visibility through the File Plan.
Records Management extends standard retention with record-level controls that prevent modification, enforce chain-of-custody, and satisfy regulatory obligations such as ISO 15489, GDPR Article 5 and SEC Rule 17a-4.
Business Problem
Financial records could be modified or deleted before their retention period expired, there was no centralised visibility into retention labels across workloads, legal hold coverage was inadequate for declared records, and content was disposed of without review or approval.
Regulated organisations must be able to prove that financial, legal and HR records were preserved, protected and disposed of correctly. Without record-level controls, the organisation cannot demonstrate this to auditors or in litigation.
Business Risks
- Financial records modified or deleted before retention period expires
- No centralised visibility into retention labels across workloads
- Legal hold inadequate for declared records during litigation
- Disposition of records without review or approval
Compliance Concerns
- ISO 15489 records management principles
- GDPR Article 5 storage limitation and integrity requirements
- SEC Rule 17a-4 style immutable record-keeping obligations
Solution Overview

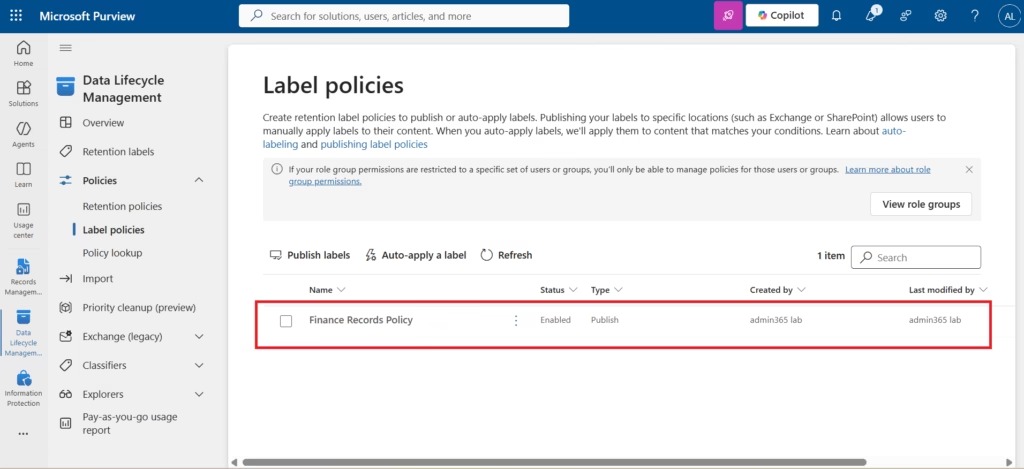

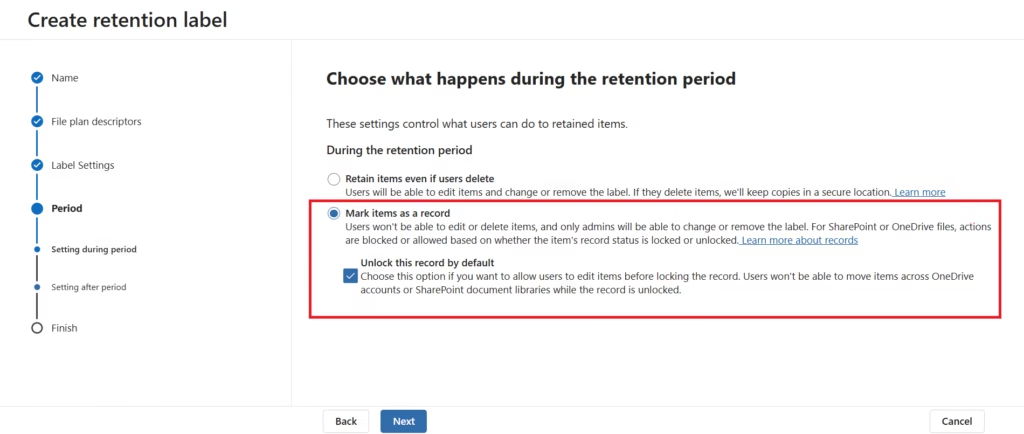

A record label (MS102-Finance-Record) was created with a 7-year retention period and the "Mark items as a record" setting enabled, converting a standard retention label into a Record Label with enhanced governance controls, then published to Exchange Online, SharePoint Online and OneDrive.
The File Plan provides a single, centralised view of all record labels, retention durations and disposition settings, while Disposition Review assigns reviewers who must approve permanent deletion once the retention period lapses — closing the gap where records could previously be deleted without oversight.
Architecture
Architecture diagram placeholder
Technology Stack
Microsoft Purview Records Management
Record declaration, File Plan and disposition workflow
Record Labels
"Mark items as a record" retention labels with enhanced governance
Regulatory Record Labels
Highest-level protection — cannot be removed once applied
Disposition Review
Reviewer approval workflow before permanent deletion
Event-Based Retention
Contract and legal document retention triggered by an event
PowerShell / Microsoft Graph
Record label reporting and File Plan export
Lab Environment
- Tenant
- Patchthecloud.onmicrosoft.com
- Admin Portal
- compliance.microsoft.com
- Licensing
- Microsoft 365 E5
- Workloads
- Exchange Online, SharePoint Online, OneDrive, Teams
- Scope
- Organisation-wide + Finance adaptive scope
Implementation
A phased, expandable walkthrough. Screenshots and evidence can be attached to each phase.
Confirm Records Management is enabled for the tenant.
- Navigate to compliance.microsoft.com → Solutions → Records Management
- Confirm the solution is enabled
- Review existing retention label estate before adding record labels
Screenshots for this phase can be added here.
PowerShell
Illustrative example snippets — copy or download each script. Production values are placeholders.
Export all record labels
# Illustrative scaffold based on Get-RecordLabels.ps1
Connect-IPPSSession -UserPrincipalName admin@patchthecloud.onmicrosoft.com
.\scripts\Get-RecordLabels.ps1 -OutputPath ".\reports\record-labels.csv"Export the full File Plan
# Illustrative scaffold based on Export-FilePlan.ps1
Get-ComplianceTag | Select-Object Name, RetentionDuration, IsRecordLabel, RetentionAction |
Export-Csv -Path .\reports\file-plan.csv -NoTypeInformationAudit Records Management configuration
# Illustrative scaffold based on Get-RecordsManagementConfiguration.ps1
Get-CompliancePolicy | Where-Object Name -like "*Record*" |
Select-Object Name, Enabled, ModeConfiguration Screenshots
Click any tile to open the lightbox. Real screenshots will replace these placeholders.
Phase 2 · Record Labels
Phase 3 · File Plan
Phase 4 · Event-Based Retention
Phase 5 · Disposition Review
Phase 6 · Regulatory Records & Validation
Validation

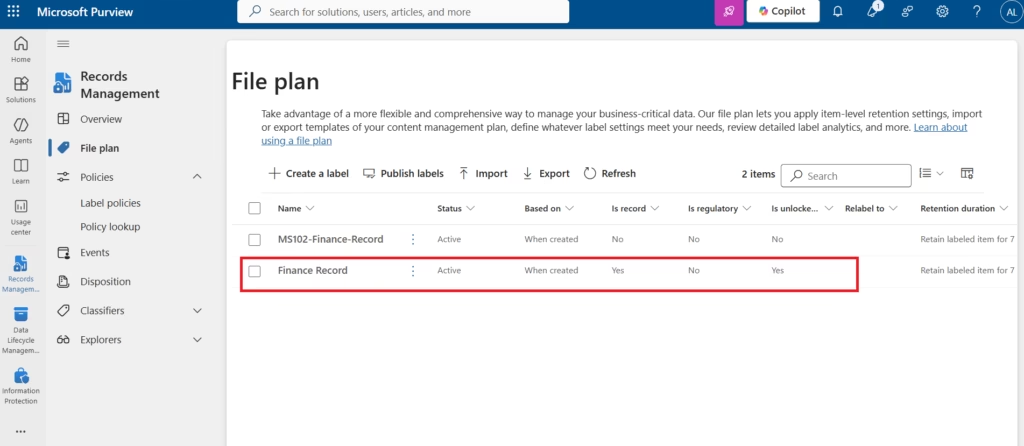

Record Visible in File Plan
MS102-Finance-Record appears with Is Record = Yes.
Published to All Workloads
Record label policy visible across Exchange, SharePoint and OneDrive.
Modification Prevented
Editing is blocked on declared record items.
File Plan Completeness
Duration, action and record type all visible centrally.
Disposition Configured
Reviewer assigned; approval workflow active.
Regulatory Record Immutability
Label removal blocked by administrators once applied.
Challenges
Publishing is not the same as applying
Publishing a record label makes it available to users; it does not automatically apply the label to existing content — auto-apply policies are required for that.
Regulatory Records cannot be undone
Unlike standard Record Labels, Regulatory Records cannot be removed by administrators once applied, so they were thoroughly tested before any production consideration.
Lessons Learned
- Publishing ≠ applying — auto-apply policies are required to label existing content, not just new content.
- The "Unlock this record by default" option is useful during drafting phases before formally locking a record.
- The File Plan is read-only in Records Management; configuration changes are made in Data Lifecycle Management.
- Disposition review workflows require Microsoft 365 E5 or the Compliance add-on.
Business Impact
Record Labels enforced
Immutable Records
File Plan
Centralised Visibility
Reviewer approval
Governed Disposition
PowerShell reporting
Administrative Efficiency
